旋轉衝擊/振動機 Rotary Sharker/Vibration Machine GHI Rotary Shaker

旋轉衝擊/振動機RotarySharker/VibrationMachine
產品特色
  • 為針對硬碟內部零件測試儀器
  • 硬碟本身對相關環境的認受度
  • 進一步來進行搭配系統的修正

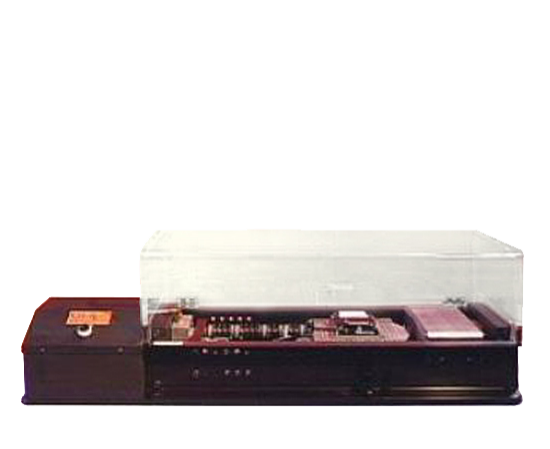

 GHI Rotary Shock/Vibration Machine 旋轉衝擊/振動機

為小物件的水平衝擊機,Duration的要求不同,可提供數百到上千G的衝擊力,相對於其他衝擊機,此為輕薄可攜帶式的衝擊機選擇。

Basic Machine, Stand Shock, Optional Vibration Capability*

Type of Machine Pneumatic Driven Pistion with MEP Programmers
Directionality Bidirectional with quick connect changeover of actuator
Shock Pulse Shape Nominal Haversine
Typical Shock Capability @ max air presure 50KRad/sec2 @ 2 msec,
70KRad/sec2 @ 1.5 msec, 100KRad/sec2 @ 1 msec.
Table Rotation 4 inches at outer radius, allows more convenient high speed photography
Random Vibration N/A
Velocity Change, Max 50 Rad/sec
Actuator Pneumatic with vernier flow adjustment for volume, adjestable pneumatic stroke shock absorber. 12V DC solenoids for piston valve control, allowing remote operation in conjunction with other test systems.
Test Unit Mounting 8.8 inches (223mm) diameter mounting hole grid: 0.984inch(25mm) centers with Heli-Coil inserts. #7 Metric
Brake-agter-impact Pnumatic energy absorber with adjustable damping. Reduces braking shock to less than 10% of primary shock.
Test Sample Weight 6 lbs (3kG)m, Max.
Supply Air Requirements 100-120 PSI dry filtered air
Off-axis noise amplitude, 0 to 5KHz bandwidth Less than 20% of primary magnitude within spectral band form 0 to 5KHZ at fixture mounting points.
Physical Size 19x39in(483mm x 990mm) base 16in (406mm) High
Weight Approx 280 lbs (127Kg)

*Includes VTS actuator and random controller. Sine & Bump Shock additional.


產品詢價

請勾選您欲詢問的產品,並點選下方「加入詢價車」按鈕。
您可以一次加入多項產品,並點擊網頁右側詢價車圖示完成詢價。

所有規格如有更改,恕不另行通知。
